首頁進口晶振 CTS晶振28.375MHz,403C35D28M37500,3225mm,±30ppm,18pF,無線通訊晶振

28.375MHz,403C35D28M37500,3225mm,±30ppm,18pF,無線通訊晶振

編號：19436563
頻率：28.375MHz
尺寸：3.2x2.5mm

28.375MHz,403C35D28M37500,3225mm,30ppm,18pF,無線通訊晶振，美國進口晶振，CTS西迪斯晶振Model403系列，編碼為403C35D28M37500，是一款小體積晶振尺寸3.2x2.5mm晶振，四腳貼片晶振，無源晶振，石英晶體諧振器，無鉛...

分享到

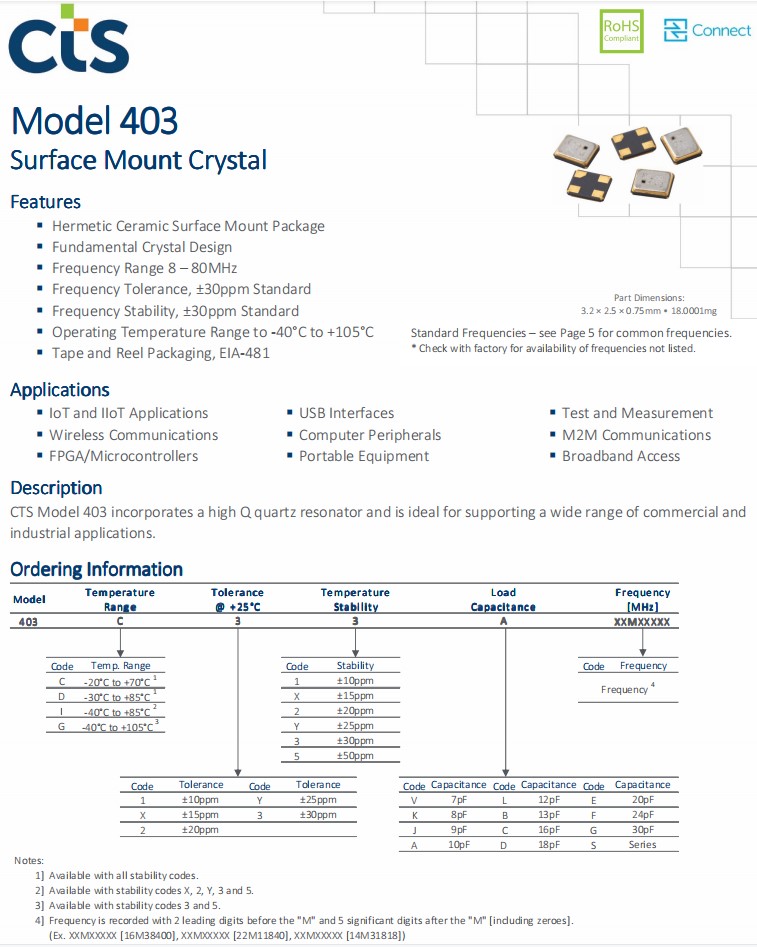

28.375MHz,403C35D28M37500,3225mm,±30ppm,18pF,無線通訊晶振，美國進口晶振，CTS西迪斯晶振Model 403系列，編碼為403C35D28M37500，是一款小體積晶振尺寸3.2x2.5mm晶振，四腳貼片晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，CTS 403型集成了一個高Q石英諧振器，是支持各種商業和工業應用。密封陶瓷表面貼裝封裝，基礎晶體設計，頻率為28.375MHz，頻率公差30ppm標準，頻率穩定性50ppm標準，工作溫度范圍為-20°C至+70°C，膠帶和卷軸包裝，石英晶振，應用于：物聯網和物聯網應用，無線通信， FPGA/微控制器，USB接口，汽車音響控制器，計算機外圍設備，便攜式設備，測試，M2M通信公司，寬帶接入等應用。

28.375MHz,403C35D28M37500,3225mm,±30ppm,18pF,無線通訊晶振 參數表

晶振規格	型號	Model 403	石英晶振基本條件
標準頻率	f_nom	28.375MHz	標準頻率
工作溫度	T_use	-40°C ~ +85°C	標準溫度
儲存溫度	T_stg	-40°C ~ +125°C	裸存
激勵功率	DL	200μW Max.	推薦:1μW ～ 100μW
頻率公差	f_— l	±50 × 10-6 (標準),	+25°C 對于超出標準的規格說明,
頻率公差	f_— l	(±15 × 10-6 ～ ±50 × 10-6 可用)	請聯系我們以便獲取相關的信息,http://konuaer.com
頻率溫度特征	f_tem	±30 × 10-6/-20°C ～ +70°C	超出標準的規格請聯系我們.
負載電容	CL	8pF ,10PF,12PF,20PF	不同負載電容要求,請聯系我們.
串聯電阻(ESR)	R1	如下表所示	-40°C — +85°C, DL = 100μW
頻率老化	f_age	±5 × 10-6 / year Max.	+25°C,第一年

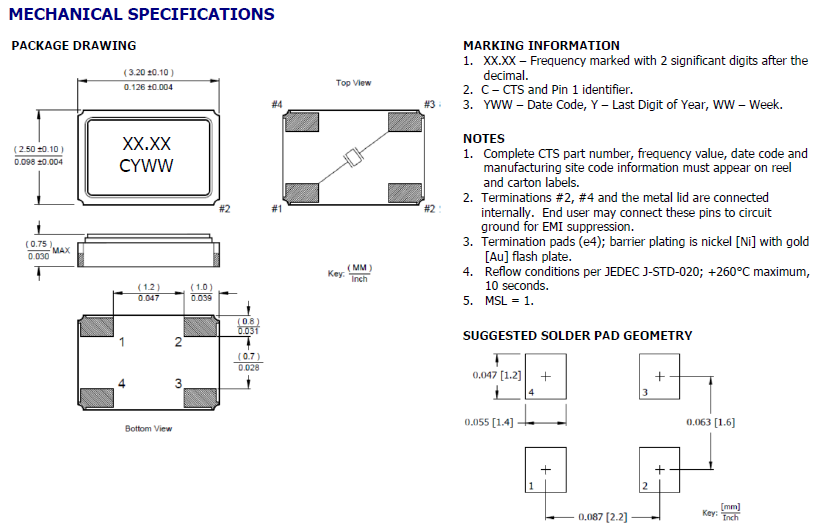

28.375MHz,403C35D28M37500,3225mm,±30ppm,18pF,無線通訊晶振 尺寸圖

貼片石英晶振	廠家	型號	頻率	包裝/封裝
403C11A32M00000	CTS晶振	403	32MHz	4-SMD, No Lead
403C35D25M00000	CTS晶振	403	25MHz	4-SMD, No Lead
403C35D12M00000	CTS晶振	403	12MHz	4-SMD, No Lead
403C35D24M00000	CTS晶振	403	24MHz	4-SMD, No Lead
403C35E13M00000	CTS晶振	403	13MHz	4-SMD, No Lead
403C35E27M00000	CTS晶振	403	27MHz	4-SMD, No Lead
403C11A16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403C11A24M00000	CTS晶振	403	24MHz	4-SMD, No Lead
403C11A16M80000	CTS晶振	403	16.8MHz	4-SMD, No Lead
403C35D22M11840	CTS晶振	403	22.1184MHz	4-SMD, No Lead
403C35D28M37500	CTS晶振	403	28.375MHz	4-SMD, No Lead
403C35D28M63636	CTS晶振	403	28.63636MHz	4-SMD, No Lead
403C35E12M00000	CTS晶振	403	12MHz	4-SMD, No Lead
403C23E26M69000	CTS晶振	403	26.69MHz	4-SMD, No Lead
403C35E16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403C11A12M00000	CTS晶振	403	12MHz	4-SMD, No Lead
403I35D12M00000	CTS晶振	403	12MHz	4-SMD, No Lead
403I35D16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403I35D24M00000	CTS晶振	403	24MHz	4-SMD, No Lead
403I35D30M00000	CTS晶振	403	30MHz	4-SMD, No Lead
403I35E16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403I35E26M00000	CTS晶振	403	26MHz	4-SMD, No Lead
403C11E32M00000	CTS晶振	403	32MHz	4-SMD, No Lead
403C35D27M00000	CTS晶振	403	27MHz	4-SMD, No Lead
403C35E26M00000	CTS晶振	403	26MHz	4-SMD, No Lead
403C35D48M00000	CTS晶振	403	48MHz	4-SMD, No Lead
403C35D20M00000	CTS晶振	403	20MHz	4-SMD, No Lead
403C11E16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403C11A40M00000	CTS晶振	403	40MHz	4-SMD, No Lead
403C35D30M00000	CTS晶振	403	30MHz	4-SMD, No Lead
403C11A20M00000	CTS晶振	403	20MHz	4-SMD, No Lead
403I35D27M00000	CTS晶振	403	27MHz	4-SMD, No Lead
403I35D18M43200	CTS晶振	403	18.432MHz	4-SMD, No Lead
403I35D20M00000	CTS晶振	403	20MHz	4-SMD, No Lead
403I35E20M00000	CTS晶振	403	20MHz	4-SMD, No Lead
403C11A13M00000	CTS晶振	403	13MHz	4-SMD, No Lead
403C35D16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403C11A26M00000	CTS晶振	403	26MHz	4-SMD, No Lead
403C11A14M74560	CTS晶振	403	14.7456MHz	4-SMD, No Lead
403I35D26M00000	CTS晶振	403	26MHz	4-SMD, No Lead
403I35D25M00000	CTS晶振	403	25MHz	4-SMD, No Lead
403C35D40M00000	CTS晶振	403	40MHz	4-SMD, No Lead
403C11A14M40000	CTS晶振	403	14.4MHz	4-SMD, No Lead
403C11A16M38400	CTS晶振	403	16.384MHz	4-SMD, No Lead
403C11A19M20000	無源晶振	403	19.2MHz	4-SMD, No Lead
403C11A19M68000	CTS晶振	403	19.68MHz	4-SMD, No Lead
403C11A24M55350	CTS晶振	403	24.5535MHz	4-SMD, No Lead
403C11A24M57600	CTS晶振	403	24.576MHz	4-SMD, No Lead
403C11A27M00000	CTS晶振	403	27MHz	4-SMD, No Lead
403C11A30M00000	CTS晶振	403	30MHz	4-SMD, No Lead
403C11A36M00000	CTS晶振	403	36MHz	4-SMD, No Lead
403C11B24M00000	CTS晶振	403	24MHz	4-SMD, No Lead
403C11B26M00000	CTS晶振	403	26MHz	4-SMD, No Lead
403C11B32M00000	CTS晶振	403	32MHz	4-SMD, No Lead
403C11J12M00000	CTS晶振	403	12MHz	4-SMD, No Lead
403C11J13M00000	CTS晶振	403	13MHz	4-SMD, No Lead
403C11J14M40000	CTS晶振	403	14.4MHz	4-SMD, No Lead
403C11J16M00000	CTS晶振	403	16MHz	4-SMD, No Lead
403C11J19M68000	CTS晶振	403	19.68MHz	4-SMD, No Lead
403C35D13M00000	CTS晶振	403	13MHz	4-SMD, No Lead
403C35D14M31818	CTS晶振	403	14.31818MHz	4-SMD, No Lead
